Our Offerings

---

 We offer a wide choice of laser marking systems : Fiber laser, Hybrid laser, CO2 laser and Green laser, designed for integration into production lines or manufacturing process.

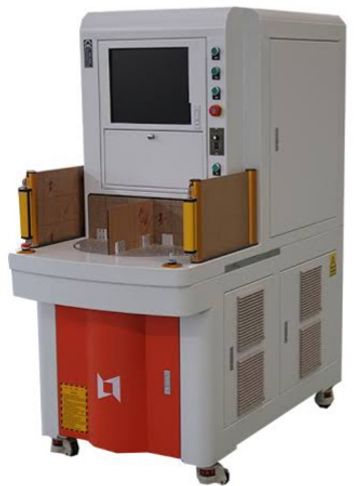

• Multi-Station Laser Marking System with 4 Position PLC Controlled Auto Indexer, Auto Focus Scanner & Multi File Marking. IPG/JPT Laser Source options. No set up changes for continuous production system. Integrated Traceability.
• Desktop laser marking machine with rotary axis for marking on cylindrical surfaces
• On the fly laser marking system -"Mark on-the-Fly" stands for the marking of moving workpieces. For continuous production lines, marking 'on the fly' offers great solution flexibility by enabling marking of the product while it is moving.

We can offer laser source - IPG, Trump JPT, Raycus, Max, etc, Galvo scanners - Scanlab, Sino, etc, Controls & Softwares - Scapes, BJCZ, etc., Lens - wavelength

• The XYZ Linear Stage has a ground precision leadscrew that ensures smooth running. The combination of recirculating ball bearing and the stress-relieved aluminum base ensures good performance data.

• The gantry Robot is a modular cartesian axis concept which is based on positioning system standard components. The Robot has flexibility up to 6 degree of freedom and because of its overhead axis arrangement requires minimum floor space. To operate the machine simple programming is required - a user guide with Motion Control is provided. There are 8 standardized gantry sizes and the payload range is from 5-100 kg. The leg positions are variable and there are holding brakes on all the motors. The leg height and working ranges are set according to customer demands.

Applications : Precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing, engraving, etc.

 Our system is highly energy efficient, designed to substitute power consuming hydraulic and pneumatic presses. Combined with a wide choice of accessories, it offers many possibilities in a variety of applications. High Accuracy, speeds and repeatability features outperforms conventional Mechanical, Pneumatic and Hydraulic presses in all aspects. The Actuators, servo motors and drives used are from the Global leader in motion control technology.

• Precise position control which is essential for output product Quality control.
• Force vs Displacement plot functionality enables customer to identify root cause in rejected components.
• User set tolerance band for force vs displacement curve.
• Multiple types of components can be pressed using the same system.
• Energy efficient. Safety features built-IN.
• Automatic teach mode when adding a new component Logged values of Force vs Displacement can be saved for future reference with Part name, date and time stamp

Features:

• Servo press module inclusive of - a) servo electric cylinder, b) servo motor with absolute encoder , drive & cables, c) motion controller - HMI + PLC, d) pressure sensor, e) external position sensor / grating ruler (if required)
• Application : Press bearing, bush on shaft and in housing
• Capacity : 10KN, 30KN, 50KN, 100KN
• Stoke : 300 mm
• Speed : No load 300mm/sec, on load - 30 mm/sec (during press - max)
• Repeatability : 0.010mm
• Nosie : <60 dB
• Working environment : Industrial use,
• Temperature - room temperature 10 (min) to 50 (max) degree centigrade
• Inline & parallel both motor - cylinder combination preferred
• Front flange mounting is preferred to mount servo press modules in vertical direction.
• Ethernet IP communication is preferred for PLC communication
• Basic pay load at 0 RPM - 10 kg to 25 kg (mx)
• Force Accuracy : 0.1%

Digital Type Torque Wrenches:

• Digital torque wrench with wireless data transfer via Bluetooth®
• Use Two Ways: For inspection and for tightening applications
• Built-in Bluetooth® module makes data collection easy
• Two modes: Simplex communication and Duplex communication
• Manage modes with maintenance keypad sequence
• Simplex Mode
  • Wirelessly transmits captured torque data to a receiving PC
  • Output the data after each operation or "dump" a range of data at one time from the memory.
• Duplex Mode
  • Tool can receive instructions for tightening torque value and number of fasteners in the operation from a PC.
  • Outputs the applied torque values back to the PC after each tightening operation is completed.
• Interchangeable head torque wrenches can be used with our interchange head lineup which offers the best selection, making these wrenches ideal for your work.
• Add Software Package to simplify set up and provide a solution for collecting torque data for assembly work or quality inspection routes.

DC Torque Tools / Nutrunners:

• Straight Nutrunner - Single Torque Transducer - Angle Encoder:
  • Long Service Life
  • Maximum Precision
  • High Accuracy
  • Free speed
  • On-Board trouble shooting
  •  Floating adapter
• Angle Nutrunner - Clutch Shut-Off - Lever Start - Collar Reverse
  • Lightweight,
  • ergonomic, and easy to service
  • Indexable angle head for added versatility
  • Best-in-class torque repeatability and long calibration cycle
  • Industry standard for reliability
  • Oil-less blades reduce oil mist in work area

An industrial PC is a computer intended for industrial purposes (production of goods and services), with a form factor between a nettop and a server rack. Industrial PCs have higher dependability and precision standards, and are generally more expensive than consumer electronics.

• 15/17/21 inch fanless core i3 i5 i7 ip65 all in one industrial HMI touch screen panel tablet pc.

Product Feature

- LCD screen with LED backlight, custom screen size is available

- IP65 water-proof and dust-proof front panel

- Intel®4th generation Pentium 3558U DDR3-4G SSD-32G

- Resistive touch or 10 point projected capacitive touch

- Fanless design with good heat dissipation

- Full aluminum die-casting molds enclosure

- Support 9V - 36V wide voltage

- 100mm*100mm VESA mount, embedded, desktop, wall mounted installation way is available

- Multiple I/O, including HDMI, RS232/RS485, USB, Gigabit Ethernet port, GPIO, etc.

Configurations:

Motherboard:

- Intel®4th generation Pentium 3558U/ DDR3-4G/SSD-32/64/128G

- Upgrade Intel@4th Core i3-4005U/i5-4200U/ i7-4500U, DDR3-4G, SSD-64G/128G

I/O:

- HDMI 1*HDMI output

- USB 4*USB 3.0

- Network 2*RJ45 with 1000 Base-T

- Com 2* COM(RS232), can changed to RS485 or add more 2 to 4 RS232

- Power supply 1*DC lock phoenix terminal, Support 9-36V

- Audio output 1*3.5mm audio

- Optional WiFi(802.11b/g/n), 3/4G module, 8*GPIO

Display:

- Size(inch) 10.4, 12.1, 15, 17, 19

- Screen type LCD screen with LED backlight

- Resolution 1024*768(10.4", 12.1", 15"), 1280*1024(17", 19")

- Brightness 200cd/㎡, 250cd/㎡ or customized

• - Touch type Projected 10-point capacitive touch or resistive touch

 We offer family of :

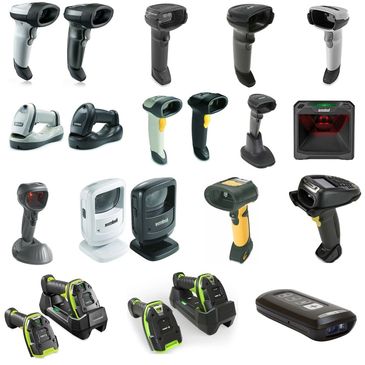

• Fixed mount barcode scanners enables high-performance, hands-free scanning in zero-footprint applications. These devices can be integrated into a wide variety of products or used standalone.
• Direct part marks and high density barcode scanners for Manufacturing industry. This intuitive imager has the widest decode range in its class—enabling workers to position it at a more natural distance to see the barcode or mark they are scanning.

Applications -

• Electronics Manufacturing
• Medical Equipment Manufacturing
• Telecom
• Lifetime Identification (UID)
• Track and Trace
• Maintenance Management
• Warranty Service
• Product Authentication
• Automotive/Aerospace/Defense

 Hollow shaft encoders

We offer both incremental and absolute hollow shaft encoders in a variety of dimensions and pulses. Hollow shaft encoder can be mounted to a motor shaft directly and fixed by using a flexible spring plate to prevent the encoder from rotating and vibration . The hollow shaft encoder is easier to install than solid shaft encoder, eliminating the need for a coupling and do not require motor shaft alignment with respect to the encoder. we offer two types hollow shaft: hollow shaft through hole or hollow shaft blind hole (hub-shaft) - For incremental hollow shaft encoder we provides inner hole diameter from 2.5mm to 82mm  and resolution from 50ppr to 80,000ppr - For absolute hollow shaft encoder, we provides inner hole diameter from 8mm to 15mm  and resolution from 50ppr to 80,000ppr

Absolute Encoder

Absolute encoders are feedback devices that provide speed, position information by outputting a digital word or bit in relation to motion. Compared to incremental encoders, absolute encoder always outputs with a continuous stream of ubiquitous pulses, it outputs unique words or bits for each position. By outputting a digital word or bit instead of a stream of pulses, absolute rotary encoders offer several advantages: 1.Higher overall resolution than incremental encoders 2.Better start up performance because of low homing (or initial position) time 3.Accurate motion detection along multiple axes 3.Multiple output protocols for better electronics integration to meet with various applications. 4.Better recovery from system or power failures to shorten the motor working life

Incremental Encoder

Output is a pulse signal that is generated when the transducer disk rotates as a result of the motion that is being measured.– By counting pulses or by timing the pulse width using a clock signal, both angular displacement and angular velocity can be determined.– Displacement, however, is obtained with respect to some reference point on the disk, as indicated by a reference pulse (index pulse) generated at that location on the disk. Output Signal: NPN, PNP, HTL, TTL,RS422,Push-Pull, Voltage output
